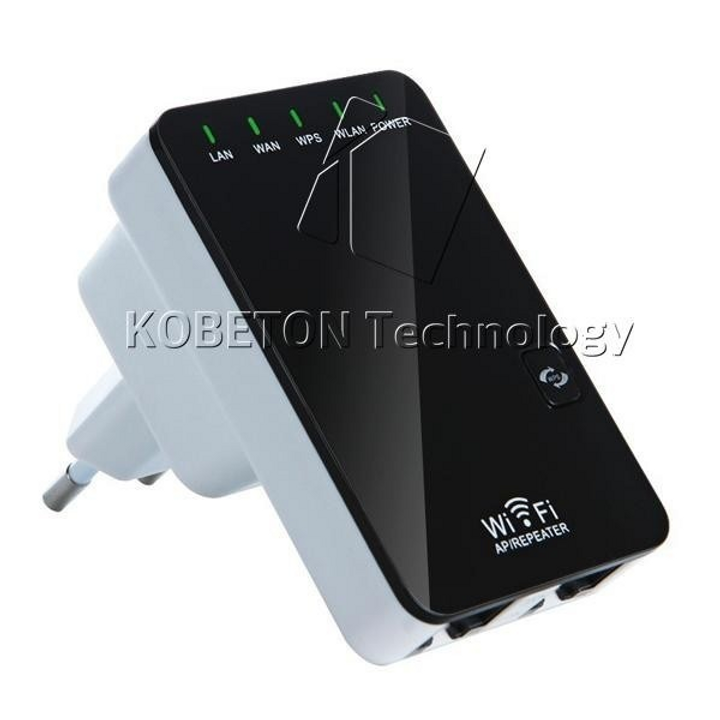

NEW Wireless-N Network Router AP WIFI Repeater Amplifier LAN Client Bridge IEEE 802.11b/g/n 300Mbps Singnal Booster
Universally complies with IEEE 802.11n, IEEE 802.11g and IEEE 802.11b standards.

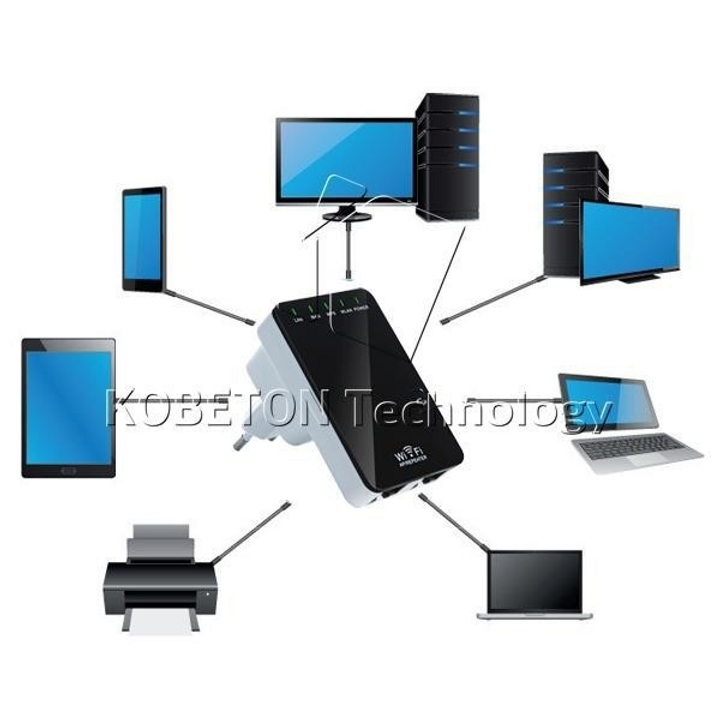

Supports AP, Router, Client, Bridge and Repeater modes.
Without External power adapter.

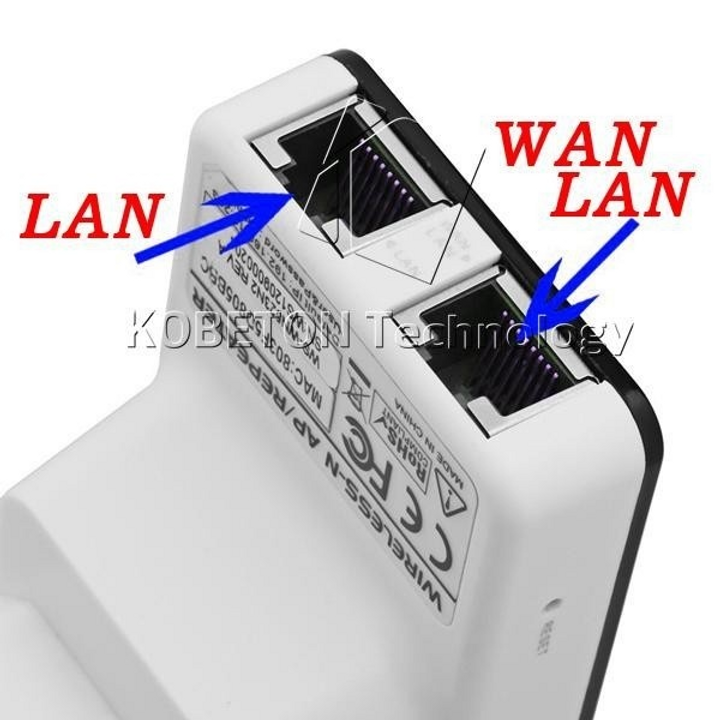

Provides one 10/100Mbps Auto-Negotiation Ethernet WAN/LAN port.
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN port.
QoS function assures the quality of VoIP and multimedia streaming.
WLAN 802.11n for wireless high-speed access up to 300Mbps, ideal for video streaming, online gaming and Internet calling.
2T2R MIMO™ delivers greater throughput at range versus conventional 1T1R.
Easy Setup Assistant provides quick & hassle free installation.
Supports SSID broadcast control.
WMM and WMM-APSD supported.
Internal Omni Directional antenna.
Easy wireless security encryption at a push of WPS button.
Supports 64/128/152-bit WEP, complies with 128 bit WPA(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X.
User interface supports free WEB software updates.
Supports configuration file backup and restore.
Mini and pocket design, ideal for home or travel use.
Interface 2 * 10/100Mbps Lan ports
Button WPS button, Reset button
Antenna 2 * Internal Omni Directional antenna
Wireless standard IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency & Rate 2.4GHz - 2.485GHz, up to 300Mbps
Wireless transmit power 20dBm(EIRP)
Reception sensitivity 270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER
Wireless modes Router, Client, Bridge, Repeater, AP mode
Wireless functions Enable/Disable wireless radio, WDS Bridge, WMM, Wireless Statistics
Wireless security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
WAN type Dynamic IP/Static IP/PPPoE/PPTP/L2TP
DHCP Server, Client, DHCP, Client List, Address Reservation
Quality of service WMM, Bandwidth Control
Port forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, TZO
Firewall security DoS, Firewall, IP address filter/MAC address filter/Domin filter IP and MAC address binding
Management Access control, Local Management, Remote Management
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, MAC OS, NetWare, UNIX OR Linux
Environment Operating Temperature: 0 - 40 degree, Storge Temperature: -40 - 70 degree, Operating Humidity: 10% - 90% non-condening, Storage Humidity: 5% - 90% non-condensing
Product color Black + White
Product weight 71g / 2.5oz
Product size 7.5 * 4.8 * 1.5cm / 2.95 * 1.89 * 0.59
1 * Wireless Router

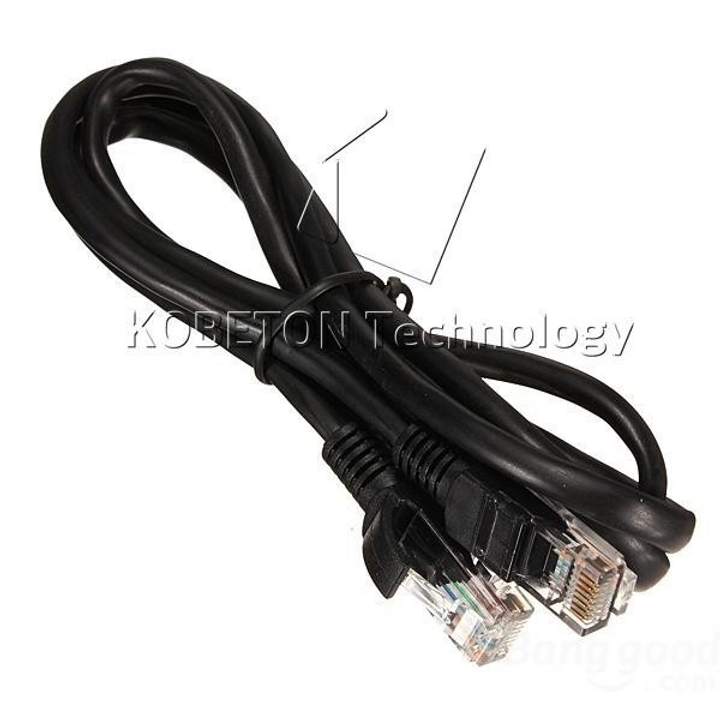

1 * Lan Cable
1 * Manual
